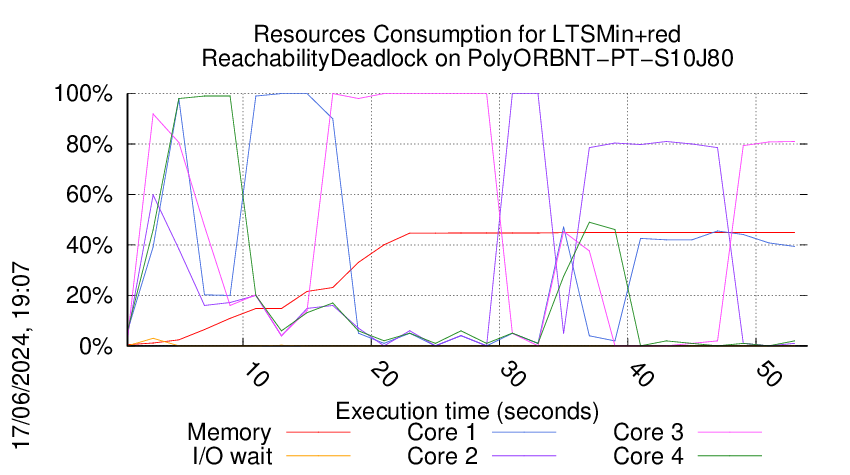

Execution Chart

We display below the execution chart for this examination (boot time has been removed).

Trace from the execution

Formatting '/mnt/tpsp/fkordon/mcc2024-input.r518-tajo-171654456100321.qcow2', fmt=qcow2 size=4294967296 backing_file='/mnt/tpsp/fkordon/mcc2024-input.qcow2' backing_fmt='qcow2' encryption=off cluster_size=65536 lazy_refcounts=off
Waiting for the VM to be ready (probing ssh)
..........................
=====================================================================
Generated by BenchKit 2-5568
Executing tool ltsminxred
Input is PolyORBNT-PT-S10J80, examination is ReachabilityDeadlock
Time confinement is 1800 seconds
Memory confinement is 16384 MBytes
Number of cores is 4
Run identifier is r518-tajo-171654456100321
=====================================================================

--------------------
preparation of the directory to be used:
/home/mcc/execution
total 27M
-rw-r--r-- 1 mcc users 39K Apr 12 11:45 CTLCardinality.txt
-rw-r--r-- 1 mcc users 196K Apr 12 11:45 CTLCardinality.xml
-rw-r--r-- 1 mcc users 509K Apr 12 10:58 CTLFireability.txt
-rw-r--r-- 1 mcc users 2.0M Apr 12 10:58 CTLFireability.xml
-rw-r--r-- 1 mcc users 4.2K May 18 16:43 GenericPropertiesDefinition.xml
-rw-r--r-- 1 mcc users 18K Apr 23 07:44 LTLCardinality.txt
-rw-r--r-- 1 mcc users 66K Apr 23 07:44 LTLCardinality.xml
-rw-r--r-- 1 mcc users 20K Apr 23 07:44 LTLFireability.txt
-rw-r--r-- 1 mcc users 84K Apr 23 07:44 LTLFireability.xml
-rw-r--r-- 1 mcc users 198K Apr 12 14:33 ReachabilityCardinality.txt
-rw-r--r-- 1 mcc users 829K Apr 12 14:33 ReachabilityCardinality.xml
-rw-r--r-- 1 mcc users 1.9M Apr 12 14:02 ReachabilityFireability.txt
-rw-r--r-- 1 mcc users 6.9M Apr 12 14:01 ReachabilityFireability.xml
-rw-r--r-- 1 mcc users 3.4K Apr 23 07:44 UpperBounds.txt
-rw-r--r-- 1 mcc users 7.4K Apr 23 07:44 UpperBounds.xml
-rw-r--r-- 1 mcc users 5 May 18 16:43 equiv_col
-rw-r--r-- 1 mcc users 7 May 18 16:43 instance
-rw-r--r-- 1 mcc users 6 May 18 16:43 iscolored
-rw-r--r-- 1 mcc users 14M May 18 16:43 model.pnml

--------------------
content from stdout:

=== Data for post analysis generated by BenchKit (invocation template)

The expected result is a vector of booleans
BOOL_VECTOR

FORMULA_NAME ReachabilityDeadlock

=== Now, execution of the tool begins

BK_START 1717270466177

Invoking MCC driver with
BK_TOOL=ltsminxred
BK_EXAMINATION=ReachabilityDeadlock
BK_BIN_PATH=/home/mcc/BenchKit/bin/
BK_TIME_CONFINEMENT=1800
BK_INPUT=PolyORBNT-PT-S10J80
BK_MEMORY_CONFINEMENT=16384
Applying reductions before tool ltsmin
Invoking reducer
Running Version 202405141337
[2024-06-01 19:34:27] [INFO ] Running its-tools with arguments : [-pnfolder, /home/mcc/execution, -examination, ReachabilityDeadlock, -timeout, 180, -rebuildPNML]
[2024-06-01 19:34:27] [INFO ] Parsing pnml file : /home/mcc/execution/model.pnml
[2024-06-01 19:34:28] [INFO ] Load time of PNML (sax parser for PT used): 713 ms
[2024-06-01 19:34:28] [INFO ] Transformed 1614 places.
[2024-06-01 19:34:28] [INFO ] Transformed 13500 transitions.
[2024-06-01 19:34:28] [INFO ] Parsed PT model containing 1614 places and 13500 transitions and 119759 arcs in 1073 ms.
Parsed 1 properties from file /home/mcc/execution/ReachabilityDeadlock.xml in 6 ms.
Working with output stream class java.io.PrintStream
Ensure Unique test removed 10110 transitions
Reduce redundant transitions removed 10110 transitions.
Built sparse matrix representations for Structural reductions in 10 ms.59532KB memory used
Starting structural reductions in DEADLOCK mode, iteration 0 : 1614/1614 places, 3390/3390 transitions.
Computed a total of 0 stabilizing places and 0 stable transitions
Ensure Unique test removed 10 places
Computed a total of 0 stabilizing places and 0 stable transitions
Drop transitions (Trivial Post-Agglo cleanup.) removed 86 transitions
Trivial Post-agglo rules discarded 86 transitions
Performed 86 trivial Post agglomeration. Transition count delta: 86
Iterating post reduction 0 with 96 rules applied. Total rules applied 96 place count 1604 transition count 3304
Reduce places removed 86 places and 0 transitions.
Computed a total of 0 stabilizing places and 0 stable transitions
Iterating post reduction 1 with 86 rules applied. Total rules applied 182 place count 1518 transition count 3304
Computed a total of 0 stabilizing places and 0 stable transitions
Performed 85 Pre agglomeration using Quasi-Persistent + Divergent Free condition..
Pre-agglomeration after 2 with 85 Pre rules applied. Total rules applied 182 place count 1518 transition count 3219
Deduced a syphon composed of 85 places in 1 ms
Reduce places removed 85 places and 0 transitions.
Iterating global reduction 2 with 170 rules applied. Total rules applied 352 place count 1433 transition count 3219
Computed a total of 0 stabilizing places and 0 stable transitions
Discarding 1 places :
Symmetric choice reduction at 2 with 1 rule applications. Total rules 353 place count 1432 transition count 3218
Iterating global reduction 2 with 1 rules applied. Total rules applied 354 place count 1432 transition count 3218
Computed a total of 0 stabilizing places and 0 stable transitions
Performed 2 Post agglomeration using F-continuation condition.Transition count delta: 2
Deduced a syphon composed of 2 places in 6 ms
Reduce places removed 2 places and 0 transitions.
Iterating global reduction 2 with 4 rules applied. Total rules applied 358 place count 1430 transition count 3216
Computed a total of 0 stabilizing places and 0 stable transitions
Computed a total of 0 stabilizing places and 0 stable transitions
Applied a total of 358 rules in 984 ms. Remains 1430 /1614 variables (removed 184) and now considering 3216/3390 (removed 174) transitions.
Running 3205 sub problems to find dead transitions.
[2024-06-01 19:34:30] [INFO ] Flow matrix only has 3207 transitions (discarded 9 similar events)
// Phase 1: matrix 3207 rows 1430 cols
[2024-06-01 19:34:30] [INFO ] Computed 182 invariants in 234 ms
[2024-06-01 19:34:30] [INFO ] State equation strengthened by 1 read => feed constraints.
Error getting values : (error "ParserException while parsing response: (timeout
org.smtlib.IParser$ParserException: Unbalanced parentheses at end of input")
At refinement iteration 0 (INCLUDED_ONLY) 0/1420 variables, 160/160 constraints. Problems are: Problem set: 0 solved, 3205 unsolved
SMT process timed out in 48051ms, After SMT, problems are : Problem set: 0 solved, 3205 unsolved
Search for dead transitions found 0 dead transitions in 48139ms
Finished structural reductions in DEADLOCK mode , in 1 iterations and 49201 ms. Remains : 1430/1614 places, 3216/3390 transitions.
Finished random walk after 11 steps, including 0 resets, run found a deadlock after 3 ms. (steps per millisecond=3 )
FORMULA ReachabilityDeadlock TRUE TECHNIQUES TOPOLOGICAL STRUCTURAL_REDUCTION RANDOM_WALK
Total runtime 50530 ms.
ITS solved all properties within timeout

BK_STOP 1717270518155

--------------------
content from stderr:

+ ulimit -s 65536
+ [[ -z '' ]]
+ export LTSMIN_MEM_SIZE=8589934592
+ LTSMIN_MEM_SIZE=8589934592
+ export PYTHONPATH=/home/mcc/BenchKit/itstools/pylibs
+ PYTHONPATH=/home/mcc/BenchKit/itstools/pylibs
+ export LD_LIBRARY_PATH=/home/mcc/BenchKit/itstools/pylibs:
+ LD_LIBRARY_PATH=/home/mcc/BenchKit/itstools/pylibs:
++ perl -pe 's/.*\.//g'
++ sed s/.jar//
++ ls /home/mcc/BenchKit/bin//../reducer/bin//../../itstools//itstools/plugins/fr.lip6.move.gal.application.pnmcc_1.0.0.202405141337.jar
+ VERSION=202405141337
+ echo 'Running Version 202405141337'
+ /home/mcc/BenchKit/bin//../reducer/bin//../../itstools//itstools/its-tools -pnfolder /home/mcc/execution -examination ReachabilityDeadlock -timeout 180 -rebuildPNML

Sequence of Actions to be Executed by the VM

This is useful if one wants to reexecute the tool in the VM from the submitted image disk.

set -x
# this is for BenchKit: configuration of major elements for the test
export BK_INPUT="PolyORBNT-PT-S10J80"
export BK_EXAMINATION="ReachabilityDeadlock"
export BK_TOOL="ltsminxred"
export BK_RESULT_DIR="/tmp/BK_RESULTS/OUTPUTS"
export BK_TIME_CONFINEMENT="1800"
export BK_MEMORY_CONFINEMENT="16384"
export BK_BIN_PATH="/home/mcc/BenchKit/bin/"

# this is specific to your benchmark or test

export BIN_DIR="$HOME/BenchKit/bin"

# remove the execution directoty if it exists (to avoid increse of .vmdk images)
if [ -d execution ] ; then
rm -rf execution
fi

# this is for BenchKit: explicit launching of the test
echo "====================================================================="
echo " Generated by BenchKit 2-5568"
echo " Executing tool ltsminxred"
echo " Input is PolyORBNT-PT-S10J80, examination is ReachabilityDeadlock"
echo " Time confinement is $BK_TIME_CONFINEMENT seconds"
echo " Memory confinement is 16384 MBytes"
echo " Number of cores is 4"
echo " Run identifier is r518-tajo-171654456100321"
echo "====================================================================="
echo
echo "--------------------"
echo "preparation of the directory to be used:"

tar xzf /home/mcc/BenchKit/INPUTS/PolyORBNT-PT-S10J80.tgz
mv PolyORBNT-PT-S10J80 execution
cd execution
if [ "ReachabilityDeadlock" = "ReachabilityDeadlock" ] || [ "ReachabilityDeadlock" = "UpperBounds" ] || [ "ReachabilityDeadlock" = "QuasiLiveness" ] || [ "ReachabilityDeadlock" = "StableMarking" ] || [ "ReachabilityDeadlock" = "Liveness" ] || [ "ReachabilityDeadlock" = "OneSafe" ] || [ "ReachabilityDeadlock" = "StateSpace" ]; then
rm -f GenericPropertiesVerdict.xml
fi
pwd
ls -lh

echo
echo "--------------------"
echo "content from stdout:"
echo
echo "=== Data for post analysis generated by BenchKit (invocation template)"
echo
if [ "ReachabilityDeadlock" = "UpperBounds" ] ; then
echo "The expected result is a vector of positive values"
echo NUM_VECTOR
elif [ "ReachabilityDeadlock" != "StateSpace" ] ; then
echo "The expected result is a vector of booleans"
echo BOOL_VECTOR
else
echo "no data necessary for post analysis"
fi
echo
if [ -f "ReachabilityDeadlock.txt" ] ; then
echo "here is the order used to build the result vector(from text file)"
for x in $(grep Property ReachabilityDeadlock.txt | cut -d ' ' -f 2 | sort -u) ; do
echo "FORMULA_NAME $x"
done
elif [ -f "ReachabilityDeadlock.xml" ] ; then # for cunf (txt files deleted;-)
echo echo "here is the order used to build the result vector(from xml file)"
for x in $(grep '' ReachabilityDeadlock.xml | cut -d '>' -f 2 | cut -d '<' -f 1 | sort -u) ; do
echo "FORMULA_NAME $x"
done
elif [ "ReachabilityDeadlock" = "ReachabilityDeadlock" ] || [ "ReachabilityDeadlock" = "QuasiLiveness" ] || [ "ReachabilityDeadlock" = "StableMarking" ] || [ "ReachabilityDeadlock" = "Liveness" ] || [ "ReachabilityDeadlock" = "OneSafe" ] ; then
echo "FORMULA_NAME ReachabilityDeadlock"
fi
echo
echo "=== Now, execution of the tool begins"
echo
echo -n "BK_START "
date -u +%s%3N
echo
timeout -s 9 $BK_TIME_CONFINEMENT bash -c "/home/mcc/BenchKit/BenchKit_head.sh 2> STDERR ; echo ; echo -n \"BK_STOP \" ; date -u +%s%3N"
if [ $? -eq 137 ] ; then
echo
echo "BK_TIME_CONFINEMENT_REACHED"
fi
echo
echo "--------------------"
echo "content from stderr:"
echo
cat STDERR ;
