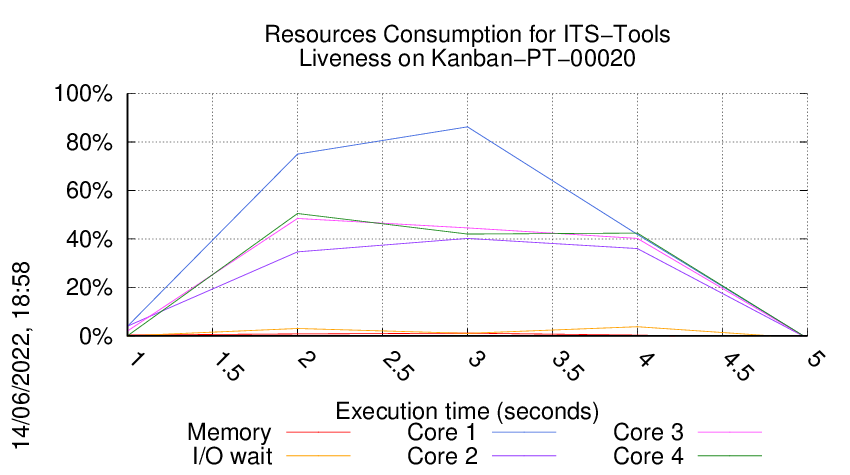

Execution Chart

We display below the execution chart for this examination (boot time has been removed).

Trace from the execution

Formatting '/data/fkordon/mcc2022-input.r139-tall-165271827600159.qcow2', fmt=qcow2 size=4294967296 backing_file=/data/fkordon/mcc2022-input.qcow2 cluster_size=65536 lazy_refcounts=off refcount_bits=16
Waiting for the VM to be ready (probing ssh)
...............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
=====================================================================
Generated by BenchKit 2-4028
Executing tool itstools
Input is Kanban-PT-00020, examination is Liveness
Time confinement is 1800 seconds
Memory confinement is 16384 MBytes
Number of cores is 4
Run identifier is r139-tall-165271827600159
=====================================================================

--------------------
preparation of the directory to be used:
/home/mcc/execution
total 228K
-rw-r--r-- 1 mcc users 6.8K Apr 29 17:33 CTLCardinality.txt
-rw-r--r-- 1 mcc users 74K Apr 29 17:33 CTLCardinality.xml
-rw-r--r-- 1 mcc users 4.8K Apr 29 17:32 CTLFireability.txt
-rw-r--r-- 1 mcc users 40K Apr 29 17:32 CTLFireability.xml
-rw-r--r-- 1 mcc users 4.2K May 10 09:34 GenericPropertiesDefinition.xml
-rw-r--r-- 1 mcc users 3.5K May 9 08:08 LTLCardinality.txt
-rw-r--r-- 1 mcc users 24K May 9 08:08 LTLCardinality.xml
-rw-r--r-- 1 mcc users 2.3K May 9 08:09 LTLFireability.txt
-rw-r--r-- 1 mcc users 17K May 9 08:09 LTLFireability.xml
-rw-r--r-- 1 mcc users 1.6K May 9 08:09 UpperBounds.txt
-rw-r--r-- 1 mcc users 3.6K May 9 08:09 UpperBounds.xml
-rw-r--r-- 1 mcc users 6 May 10 09:34 equiv_col
-rw-r--r-- 1 mcc users 6 May 10 09:34 instance
-rw-r--r-- 1 mcc users 6 May 10 09:34 iscolored
-rw-r--r-- 1 mcc users 14K May 10 09:34 model.pnml

--------------------
content from stdout:

=== Data for post analysis generated by BenchKit (invocation template)

The expected result is a vector of booleans
BOOL_VECTOR

FORMULA_NAME Liveness

=== Now, execution of the tool begins

BK_START 1652741094794

Running Version 202205111006
[2022-05-16 22:44:55] [INFO ] Running its-tools with arguments : [-pnfolder, /home/mcc/execution, -examination, Liveness, -spotpath, /home/mcc/BenchKit/bin//..//ltlfilt, -z3path, /home/mcc/BenchKit/bin//..//z3/bin/z3, -yices2path, /home/mcc/BenchKit/bin//..//yices/bin/yices, -its, -ltsmin, -greatspnpath, /home/mcc/BenchKit/bin//..//greatspn/, -order, META, -manyOrder, -smt, -timeout, 1800]
[2022-05-16 22:44:55] [INFO ] Parsing pnml file : /home/mcc/execution/model.pnml
[2022-05-16 22:44:56] [INFO ] Load time of PNML (sax parser for PT used): 47 ms
[2022-05-16 22:44:56] [INFO ] Transformed 16 places.
[2022-05-16 22:44:56] [INFO ] Transformed 16 transitions.
[2022-05-16 22:44:56] [INFO ] Parsed PT model containing 16 places and 16 transitions in 150 ms.
Discarding 4 transitions out of 16. Remains 12
Built sparse matrix representations for Structural reductions in 4 ms.8153KB memory used
Starting structural reductions in DEADLOCKS mode, iteration 0 : 16/16 places, 16/16 transitions.
Computed a total of 0 stabilizing places and 0 stable transitions
Computed a total of 0 stabilizing places and 0 stable transitions
Computed a total of 0 stabilizing places and 0 stable transitions
Applied a total of 0 rules in 8 ms. Remains 16 /16 variables (removed 0) and now considering 16/16 (removed 0) transitions.
Finished structural reductions, in 1 iterations. Remains : 16/16 places, 16/16 transitions.
Starting structural reductions in DEADLOCKS mode, iteration 0 : 16/16 places, 16/16 transitions.
Computed a total of 0 stabilizing places and 0 stable transitions
Computed a total of 0 stabilizing places and 0 stable transitions
Computed a total of 0 stabilizing places and 0 stable transitions
Applied a total of 0 rules in 2 ms. Remains 16 /16 variables (removed 0) and now considering 16/16 (removed 0) transitions.
// Phase 1: matrix 16 rows 16 cols
[2022-05-16 22:44:56] [INFO ] Computed 5 place invariants in 5 ms
[2022-05-16 22:44:56] [INFO ] Implicit Places using invariants in 104 ms returned []
// Phase 1: matrix 16 rows 16 cols
[2022-05-16 22:44:56] [INFO ] Computed 5 place invariants in 13 ms
[2022-05-16 22:44:56] [INFO ] Implicit Places using invariants and state equation in 58 ms returned []
Implicit Place search using SMT with State Equation took 189 ms to find 0 implicit places.
[2022-05-16 22:44:56] [INFO ] Redundant transitions in 0 ms returned []
// Phase 1: matrix 16 rows 16 cols
[2022-05-16 22:44:56] [INFO ] Computed 5 place invariants in 1 ms
[2022-05-16 22:44:56] [INFO ] Dead Transitions using invariants and state equation in 43 ms found 0 transitions.
Finished structural reductions, in 1 iterations. Remains : 16/16 places, 16/16 transitions.
Random walk for 1250015 steps, including 0 resets, run took 256 ms (no deadlock found). (steps per millisecond=4882 )
Random directed walk for 1250011 steps, including 0 resets, run took 239 ms (no deadlock found). (steps per millisecond=5230 )
// Phase 1: matrix 16 rows 16 cols
[2022-05-16 22:44:56] [INFO ] Computed 5 place invariants in 2 ms
[2022-05-16 22:44:56] [INFO ] [Real]Absence check using 4 positive place invariants in 1 ms returned sat
[2022-05-16 22:44:56] [INFO ] [Real]Absence check using 4 positive and 1 generalized place invariants in 0 ms returned unsat
Starting structural reductions in LIVENESS mode, iteration 0 : 16/16 places, 16/16 transitions.
Graph (trivial) has 14 edges and 16 vertex of which 8 / 16 are part of one of the 4 SCC in 5 ms
Free SCC test removed 4 places
Ensure Unique test removed 4 transitions
Reduce isomorphic transitions removed 4 transitions.
Ensure Unique test removed 1 places
Drop transitions removed 1 transitions
Trivial Post-agglo rules discarded 1 transitions
Performed 1 trivial Post agglomeration. Transition count delta: 1
Iterating post reduction 0 with 2 rules applied. Total rules applied 3 place count 11 transition count 11
Reduce places removed 1 places and 0 transitions.
Iterating post reduction 1 with 1 rules applied. Total rules applied 4 place count 10 transition count 11
Performed 1 Post agglomeration using F-continuation condition.Transition count delta: 1
Deduced a syphon composed of 1 places in 0 ms
Reduce places removed 1 places and 0 transitions.
Iterating global reduction 2 with 2 rules applied. Total rules applied 6 place count 9 transition count 10
Applied a total of 6 rules in 15 ms. Remains 9 /16 variables (removed 7) and now considering 10/16 (removed 6) transitions.
[2022-05-16 22:44:56] [INFO ] Flow matrix only has 7 transitions (discarded 3 similar events)
// Phase 1: matrix 7 rows 9 cols
[2022-05-16 22:44:56] [INFO ] Computed 4 place invariants in 0 ms
[2022-05-16 22:44:56] [INFO ] Implicit Places using invariants in 19 ms returned []
[2022-05-16 22:44:56] [INFO ] Flow matrix only has 7 transitions (discarded 3 similar events)
// Phase 1: matrix 7 rows 9 cols
[2022-05-16 22:44:56] [INFO ] Computed 4 place invariants in 0 ms
[2022-05-16 22:44:57] [INFO ] Implicit Places using invariants and state equation in 26 ms returned []
Implicit Place search using SMT with State Equation took 47 ms to find 0 implicit places.
[2022-05-16 22:44:57] [INFO ] Flow matrix only has 7 transitions (discarded 3 similar events)
// Phase 1: matrix 7 rows 9 cols
[2022-05-16 22:44:57] [INFO ] Computed 4 place invariants in 1 ms
[2022-05-16 22:44:57] [INFO ] Dead Transitions using invariants and state equation in 26 ms found 0 transitions.
Starting structural reductions in LIVENESS mode, iteration 1 : 9/16 places, 10/16 transitions.
Finished structural reductions, in 1 iterations. Remains : 9/16 places, 10/16 transitions.
Discarding 4 transitions out of 10. Remains 6
Initial state reduction rules removed 1 formulas.
Finished random walk after 85 steps, including 0 resets, run visited all 5 properties in 9 ms. (steps per millisecond=9 )
Able to resolve query QuasiLiveness after proving 6 properties.
Starting structural reductions in LIVENESS mode, iteration 0 : 16/16 places, 16/16 transitions.
Graph (trivial) has 14 edges and 16 vertex of which 8 / 16 are part of one of the 4 SCC in 0 ms
Free SCC test removed 4 places
Ensure Unique test removed 4 transitions
Reduce isomorphic transitions removed 4 transitions.
Ensure Unique test removed 1 places
Drop transitions removed 1 transitions
Trivial Post-agglo rules discarded 1 transitions
Performed 1 trivial Post agglomeration. Transition count delta: 1
Iterating post reduction 0 with 2 rules applied. Total rules applied 3 place count 11 transition count 11
Reduce places removed 1 places and 0 transitions.
Iterating post reduction 1 with 1 rules applied. Total rules applied 4 place count 10 transition count 11
Performed 1 Post agglomeration using F-continuation condition.Transition count delta: 1
Deduced a syphon composed of 1 places in 0 ms
Reduce places removed 1 places and 0 transitions.
Iterating global reduction 2 with 2 rules applied. Total rules applied 6 place count 9 transition count 10
Applied a total of 6 rules in 2 ms. Remains 9 /16 variables (removed 7) and now considering 10/16 (removed 6) transitions.
[2022-05-16 22:44:57] [INFO ] Flow matrix only has 7 transitions (discarded 3 similar events)
// Phase 1: matrix 7 rows 9 cols
[2022-05-16 22:44:57] [INFO ] Computed 4 place invariants in 1 ms
[2022-05-16 22:44:57] [INFO ] Implicit Places using invariants in 19 ms returned []
[2022-05-16 22:44:57] [INFO ] Flow matrix only has 7 transitions (discarded 3 similar events)
// Phase 1: matrix 7 rows 9 cols
[2022-05-16 22:44:57] [INFO ] Computed 4 place invariants in 1 ms
[2022-05-16 22:44:57] [INFO ] Implicit Places using invariants and state equation in 30 ms returned []
Implicit Place search using SMT with State Equation took 51 ms to find 0 implicit places.
[2022-05-16 22:44:57] [INFO ] Flow matrix only has 7 transitions (discarded 3 similar events)
// Phase 1: matrix 7 rows 9 cols
[2022-05-16 22:44:57] [INFO ] Computed 4 place invariants in 8 ms
[2022-05-16 22:44:57] [INFO ] Dead Transitions using invariants and state equation in 29 ms found 0 transitions.
Starting structural reductions in LIVENESS mode, iteration 1 : 9/16 places, 10/16 transitions.
Finished structural reductions, in 1 iterations. Remains : 9/16 places, 10/16 transitions.
Discarding 4 transitions out of 10. Remains 6
[2022-05-16 22:44:57] [INFO ] Flatten gal took : 17 ms
[2022-05-16 22:44:57] [INFO ] Flatten gal took : 3 ms
[2022-05-16 22:44:57] [INFO ] Time to serialize gal into /tmp/CTLFireability6202332428884453783.gal : 4 ms
[2022-05-16 22:44:57] [INFO ] Time to serialize properties into /tmp/CTLFireability3123006206069416842.ctl : 1 ms
Invoking ITS tools like this :cd /home/mcc/execution;'/home/mcc/BenchKit/itstools/plugins/fr.lip6.move.gal.itstools.binaries_1.0.0.202205111006/bin/its-ctl-linux64' '--gc-threshold' '2000000' '--quiet' '-i' '/tmp/CTLFireability6202332428884453783.gal' '-t' 'CGAL' '-ctl' '/tmp/CTLFireability3123006206069416842.ctl' '--gen-order' 'FOLLOW'

its-ctl command run as :

/home/mcc/BenchKit/itstools/plugins/fr.lip6.move.gal.itstools.binaries_1.0.0.202205111006/bin/its-ctl-linux64 --gc-threshold 2000000 --quiet -i /tmp/C...274
No direction supplied, using forward translation only.
Parsed 6 CTL formulae.
Model ,|S| ,Time ,Mem(kb) ,fin. SDD ,fin. DDD ,peak SDD ,peak DDD ,SDD Hom ,SDD cache peak ,DDD Hom ,DDD cachepeak ,SHom cache
reachable,1.46015e+06,0.222678,12364,2,340,5,41643,6,0,45,55536,0


Converting to forward existential form...Done !
original formula: AG(EF((Pback3>=1)))
=> equivalent forward existential formula: [(FwdU(Init,TRUE) * !(E(TRUE U (Pback3>=1))))] = FALSE
Reverse transition relation is exact ! Faster fixpoint algorithm enabled.
(forward)formula 0,1,0.23292,12364,1,0,6,41643,14,0,368,55536,5
Formula is TRUE !

***************************************

original formula: AG(EF((Pback4>=1)))
=> equivalent forward existential formula: [(FwdU(Init,TRUE) * !(E(TRUE U (Pback4>=1))))] = FALSE
(forward)formula 1,1,0.234176,12364,1,0,7,41643,15,0,368,55536,8
Formula is TRUE !

***************************************

original formula: AG(EF((((Pout3>=1)&&(P1>=1))&&(Pout2>=1))))
=> equivalent forward existential formula: [(FwdU(Init,TRUE) * !(E(TRUE U (((Pout3>=1)&&(P1>=1))&&(Pout2>=1)))))] = FALSE
(forward)formula 2,1,0.236131,12364,1,0,8,41643,16,0,370,55536,11
Formula is TRUE !

***************************************

original formula: AG(EF((Pback1>=1)))
=> equivalent forward existential formula: [(FwdU(Init,TRUE) * !(E(TRUE U (Pback1>=1))))] = FALSE
(forward)formula 3,1,0.24008,12364,1,0,9,41643,17,0,370,55536,14
Formula is TRUE !

***************************************

original formula: AG(EF((Pback2>=1)))
=> equivalent forward existential formula: [(FwdU(Init,TRUE) * !(E(TRUE U (Pback2>=1))))] = FALSE
(forward)formula 4,1,0.243693,12364,1,0,10,41643,18,0,370,55536,17
Formula is TRUE !

***************************************

original formula: AG(EF(((Pout4>=1)&&(P2>=1))))
=> equivalent forward existential formula: [(FwdU(Init,TRUE) * !(E(TRUE U ((Pout4>=1)&&(P2>=1)))))] = FALSE
(forward)formula 5,1,0.244322,12364,1,0,11,41643,19,0,371,55536,20
Formula is TRUE !

***************************************

Able to resolve query Liveness after proving 6 properties.
FORMULA Liveness TRUE TECHNIQUES DECISION_DIAGRAMS TOPOLOGICAL
Total runtime 1616 ms.

BK_STOP 1652741097629

--------------------
content from stderr:

+ export LANG=C
+ LANG=C
+ export BINDIR=/home/mcc/BenchKit/bin//../
+ BINDIR=/home/mcc/BenchKit/bin//../
++ pwd
+ export MODEL=/home/mcc/execution
+ MODEL=/home/mcc/execution
+ [[ Liveness = StateSpace ]]
+ /home/mcc/BenchKit/bin//..//runeclipse.sh /home/mcc/execution Liveness -its -ltsmin -greatspnpath /home/mcc/BenchKit/bin//..//greatspn/ -order META -manyOrder -smt -timeout 1800
+ ulimit -s 65536
+ export PYTHONPATH=/usr/lib/python3.9/site-packages/
+ PYTHONPATH=/usr/lib/python3.9/site-packages/
+ export LD_LIBRARY_PATH=/usr/local/lib:
+ LD_LIBRARY_PATH=/usr/local/lib:
+ [[ -z '' ]]
+ export LTSMIN_MEM_SIZE=8589934592
+ LTSMIN_MEM_SIZE=8589934592
++ sed s/.jar//
++ ls /home/mcc/BenchKit/bin//..//itstools/plugins/fr.lip6.move.gal.application.pnmcc_1.0.0.202205111006.jar
++ perl -pe 's/.*\.//g'
+ VERSION=202205111006
+ echo 'Running Version 202205111006'
+ /home/mcc/BenchKit/bin//..//itstools/its-tools -data @none -pnfolder /home/mcc/execution -examination Liveness -spotpath /home/mcc/BenchKit/bin//..//ltlfilt -z3path /home/mcc/BenchKit/bin//..//z3/bin/z3 -yices2path /home/mcc/BenchKit/bin//..//yices/bin/yices -its -ltsmin -greatspnpath /home/mcc/BenchKit/bin//..//greatspn/ -order META -manyOrder -smt -timeout 1800 -vmargs -Dosgi.locking=none -Declipse.stateSaveDelayInterval=-1 -Dosgi.configuration.area=@none -Xss128m -Xms40m -Xmx8192m

Sequence of Actions to be Executed by the VM

This is useful if one wants to reexecute the tool in the VM from the submitted image disk.

set -x
# this is for BenchKit: configuration of major elements for the test
export BK_INPUT="Kanban-PT-00020"
export BK_EXAMINATION="Liveness"
export BK_TOOL="itstools"
export BK_RESULT_DIR="/tmp/BK_RESULTS/OUTPUTS"
export BK_TIME_CONFINEMENT="1800"
export BK_MEMORY_CONFINEMENT="16384"
export BK_BIN_PATH="/home/mcc/BenchKit/bin/"

# this is specific to your benchmark or test

export BIN_DIR="$HOME/BenchKit/bin"

# remove the execution directoty if it exists (to avoid increse of .vmdk images)
if [ -d execution ] ; then
rm -rf execution
fi

# this is for BenchKit: explicit launching of the test
echo "====================================================================="
echo " Generated by BenchKit 2-4028"
echo " Executing tool itstools"
echo " Input is Kanban-PT-00020, examination is Liveness"
echo " Time confinement is $BK_TIME_CONFINEMENT seconds"
echo " Memory confinement is 16384 MBytes"
echo " Number of cores is 4"
echo " Run identifier is r139-tall-165271827600159"
echo "====================================================================="
echo
echo "--------------------"
echo "preparation of the directory to be used:"

tar xzf /home/mcc/BenchKit/INPUTS/Kanban-PT-00020.tgz
mv Kanban-PT-00020 execution
cd execution
if [ "Liveness" = "ReachabilityDeadlock" ] || [ "Liveness" = "UpperBounds" ] || [ "Liveness" = "QuasiLiveness" ] || [ "Liveness" = "StableMarking" ] || [ "Liveness" = "Liveness" ] || [ "Liveness" = "OneSafe" ] || [ "Liveness" = "StateSpace" ]; then
rm -f GenericPropertiesVerdict.xml
fi
pwd
ls -lh

echo
echo "--------------------"
echo "content from stdout:"
echo
echo "=== Data for post analysis generated by BenchKit (invocation template)"
echo
if [ "Liveness" = "UpperBounds" ] ; then
echo "The expected result is a vector of positive values"
echo NUM_VECTOR
elif [ "Liveness" != "StateSpace" ] ; then
echo "The expected result is a vector of booleans"
echo BOOL_VECTOR
else
echo "no data necessary for post analysis"
fi
echo
if [ -f "Liveness.txt" ] ; then
echo "here is the order used to build the result vector(from text file)"
for x in $(grep Property Liveness.txt | cut -d ' ' -f 2 | sort -u) ; do
echo "FORMULA_NAME $x"
done
elif [ -f "Liveness.xml" ] ; then # for cunf (txt files deleted;-)
echo echo "here is the order used to build the result vector(from xml file)"
for x in $(grep '' Liveness.xml | cut -d '>' -f 2 | cut -d '<' -f 1 | sort -u) ; do
echo "FORMULA_NAME $x"
done
elif [ "Liveness" = "ReachabilityDeadlock" ] || [ "Liveness" = "QuasiLiveness" ] || [ "Liveness" = "StableMarking" ] || [ "Liveness" = "Liveness" ] || [ "Liveness" = "OneSafe" ] ; then
echo "FORMULA_NAME Liveness"
fi
echo
echo "=== Now, execution of the tool begins"
echo
echo -n "BK_START "
date -u +%s%3N
echo
timeout -s 9 $BK_TIME_CONFINEMENT bash -c "/home/mcc/BenchKit/BenchKit_head.sh 2> STDERR ; echo ; echo -n \"BK_STOP \" ; date -u +%s%3N"
if [ $? -eq 137 ] ; then
echo
echo "BK_TIME_CONFINEMENT_REACHED"
fi
echo
echo "--------------------"
echo "content from stderr:"
echo
cat STDERR ;
